Sunday, September 4, 2016

Raleigh Twenty

If there were such a thing as a classic folding bike, it'd have to be the Raleigh Twenty, sold from the late 60s until the early 80s. The late Sheldon Brown was very fond of this machine.

Although it was available in the USA, these are a lot easier to find in their home country, the UK, and its other former colonies like Australia, New Zealand, South Africa and Canada.

Super Cycle Twenty



Fortunately for me, my brother who lived in Toronto patiently scoured Kijiji classifieds and found me this Canadian version - Super Cycle Twenty. He liked it enough that he bought himself the rarer 451 wheeled version.


My all-original Super Cycle Twenty with 406 wheels after assembly, which is in such good condition that only a culture vandal would dare do modifications to it.

Rollei 35 + Tessar 40mm f3.5
Fuji Neopan 400 in BTTB

Sadly, I had to leave these two British classics behind ;(


Restomod Project



I miss the Super Cycle Twenty so when the opportunity came to rescue
 a Raleigh Twenty that had been exposed to harsh elements, it became the perfect candidate for my minimalist, Mini-Velo-inspired R20.



While taking the bike apart, I had to use a hacksaw to remove the rust frozen chain, chain guard, amongst other things that were once attached with a nut or bolt ;(


The steel rims were also suffering the ravages of oxidation. Two weeks of soaking the Sturmey-Archer AW 3-speed hub in WD-40 and it still wouldn't budge. I finally decided it was best to build a new set of wheels and revisit the AW hub at a later date.


My next challenge was dismantling the headset/fork. Somehow the top nylon bushing fused with the stem, fork and headset assembly. While I was playing at the Shippensburg Music Festival, I discovered a local bicycle shop, the owner of which succeeded in taking them apart, as well as a stubborn cotter pin in the crank set. Thanks Terry!


Eventually, I got the frame stripped and prepared for repainting.

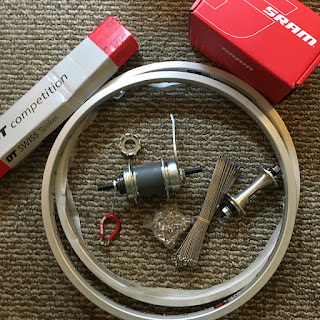

Parts for a new wheel set: Sun CR-18 406 36H rims, SRAM Automatix 2-speed coaster brake rear hub,  Sovos alloy front hub with a 5/16" axle, DT Swiss 185mm double-butted spokes + brass nipples

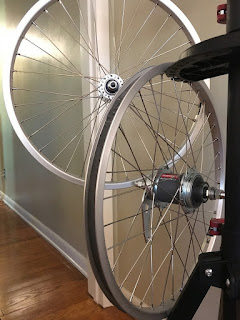

After heeding advice from the nice folks at The Raleigh Twenty forum, I used the Pro Wheel Builder to calculate for spoke length and settled on one spoke length for both front and rear wheels. The front wheel ended up laced in a 2-cross pattern while the rear is a standard 3-cross.


The frame and fork were painted using 2 cans of Rustoleum black hammerite and left to dry for a week. After cleaning the bottom bracket assembly (cups and axle), it turned out to be in excellent condition. I just repacked the bottom bracket with Phil Wood grease using brand new 1/4" ball bearings. Using a wire brush attachment to an electric drill, the 44T chainwheel and cranks polished up nicely, then I fitted a pair of lighter folding pedals.


A Ritchey Logic headset replaced the original nylon bushing.


The Origin 8 Classique Sport leather saddle + alloy seat post is significantly lighter than the original Brooks touring saddle with coil springs and its matching steel post. Kenda 20 x 1.75 road tires with new inner tubes were fitted to the rims.


Cork Grips + H2O bottle


Commissioned on Aug. 30, 2016 using the stock 44T chainring + 19T cog supplied by SRAM yielding a low 43.3 and high 58.9 gear inches. As reported in this blog, the SRAM Automatix tends to up shift too early. I haven't done the recommended hack to address this issue but bookmarked it for future reference. Meanwhile, I've learned that modulating pedal pressure prevents shifting too soon, while a slight backpedal or merely coasting can re-engage low gear. I was more concerned with the rather low gear ratios so after almost 50 kilometers of riding, I replaced the 19T with a 16T cog for a longer effective stride of 51.4 and 70 gear inches, respectively.


Looking forward to fun-filled cycling moments on this bike ;)





Sunday, August 28, 2016

70s Vintage Folding Bikes - Picnik and Rapido

I love bicycles BUT I don't like bike racks...

...so at the beginning of the summer I started scouting Craigslist for folding bikes. We finally got a deal on four vintage folding bikes in various conditions of disrepair from a bike shop in Pottstown, PA.


Three of them, disassembled, fit in the trunk. But the nicest of the bunch, the Italian Picnik, deserved a spot in the rear seat.


The Raleigh Twenty was in the worst condition, a long-term project that will be discussed in a future entry.

Picnik - aka Amica or Graziella



This single speed coaster brake Italian beauty just needed cleaning, lubrication and a new set of tires and inner tubes to get back on the road. I thought about flipping this around for a quick profit but da boss loved it and decided to keep it as a collectible ;)

Rapido from Czechoslovakia



The green unit is a single speed coaster brake model while the gold frame is equipped with an early Shimano 333 3-speed internal gear hub. Unusual for 1970s bicycles, both have alloy rims!


With minimum fettling, I was able to recommission the green Rapido using its original white sidewall tires and Brooks saddle from the Rusty Raleigh 20 project, as my daily ride.


The gold frame was rusty so I stripped and repainted it in hammertone silver.


The refurbished 3-speed Rapido with new Kenda tires and inner tubes and a genuine leather saddle from China for the touring comfort of da boss ;)


On our regular exercise/expedition route ;)


Monday, June 16, 2014

Foldr Project

Spalding 3 speed
A Japanese folding bike that resembles a Raleigh 20.

The Shimano 3 speed internal gear hub that came with it has some issues engaging the top gear.


But this laced and trued set of Araya rims with a Shimano Nexus 3 hub for the rear should fit.
