(Re)building a Hi-Fi Room


ca. 2006

Eight years ago I vacated this space, not knowing that I would be back someday...

Late Spring 2016

Altec 861 cabinet

Among those that didn't make it into the 20 foot container in 2008 was a pair of Altec 861 cabinets loaded with generic 15" drivers. I used one temporarily to get some sounds going in the room while I figured out how to repurpose the other cabinet.

Amplification


Grommes LJ2

 This sweet "Little Jewel" PP6V6 integrated mono amp fired up with no problems after almost 8 years of silence.

Rek O Kut B12GH + Velvet Touch

My hand-carried Velvet Touch tonearm "blu-tacked" on a ROK B12GH and mounted on a state-of-the-art crate plinth.


After a thorough cleaning and re-lubrication of the main bearing, Papst motor and replacement of motor mounts, the dreaded motor vibration is still felt on the tonearm finger lift. I have to send the idler wheel to Terry Witt for a rebuild and plan on building a heavy plinth.


Unlike the fussy Rek O Kut, this Pioneer PL6U is running quietly on its original lightweight plinth after I replaced the 3 perished rubber motor mounts with rubber grommets + light cleaning and re-lubrication. It sounds great with a $40 Stanton 500 cartridge!

Pioneer PL6U

Line-level sources


KLH Model Twenty One

Classic Hi-Fi FM table radio found in a bicycle shop.

Western Electric 111C
+
UTC A20

Stereo > Mono transformer mixer for the iPod Nano

Hi Eff Speaker

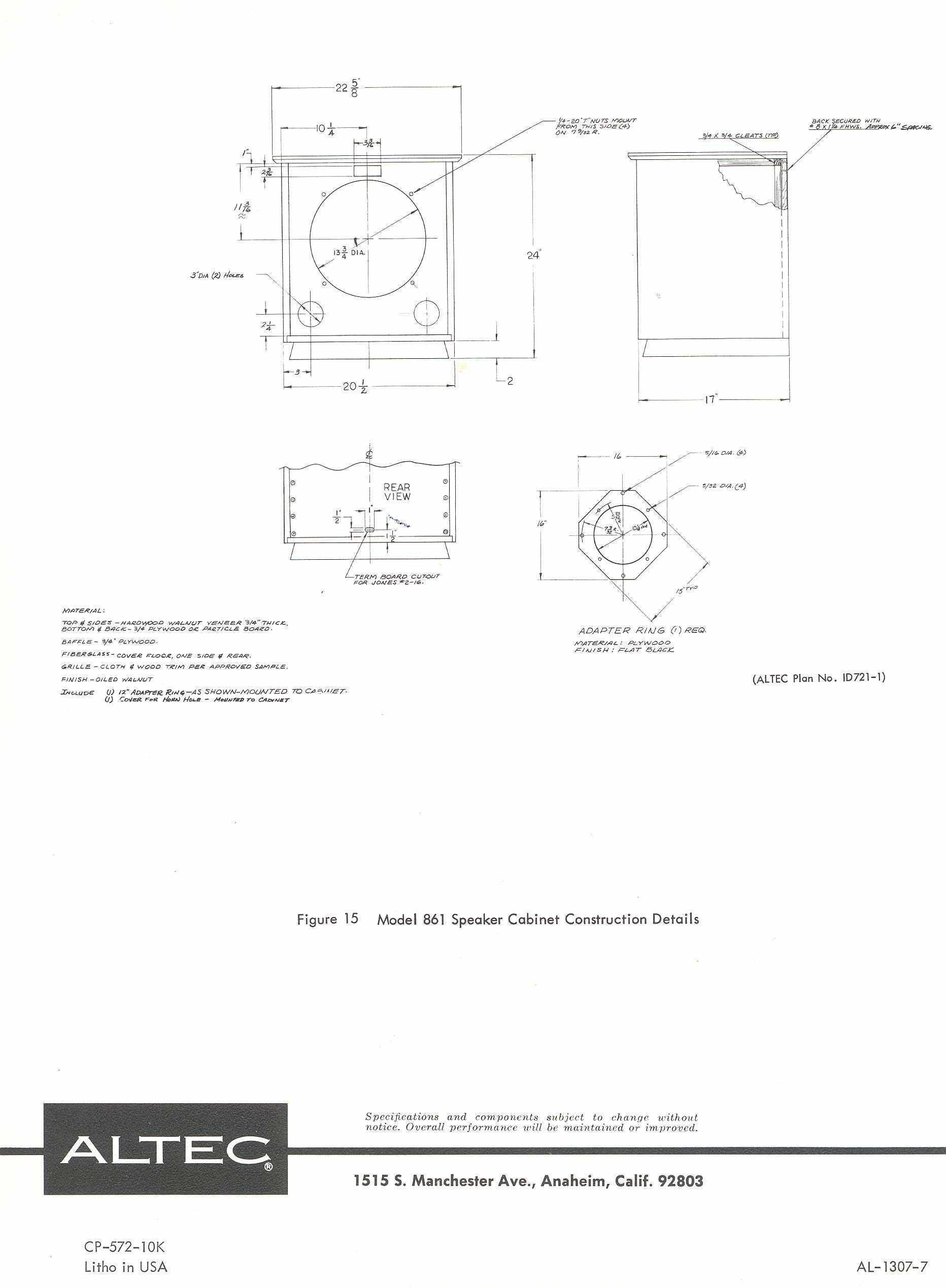

Since the Altec 861 share a similar internal volume with the Altec 614, I went to Lowe's to get 3/4" plywood cut to the size of the front panel. Using a Harbor Freight Router + Jasper Jig 200, I cut a hole for a rear mounted Altec 414A and a rectangular 2" x 7" port to mimic an Altec 614.

Altec 2-way

Altec 861 loaded with an Altec 414A running full range augmented on top by an Emilar EH800 horn or Altec 32A horn with an Emilar EA175-16 compression driver.


Work in progress...
